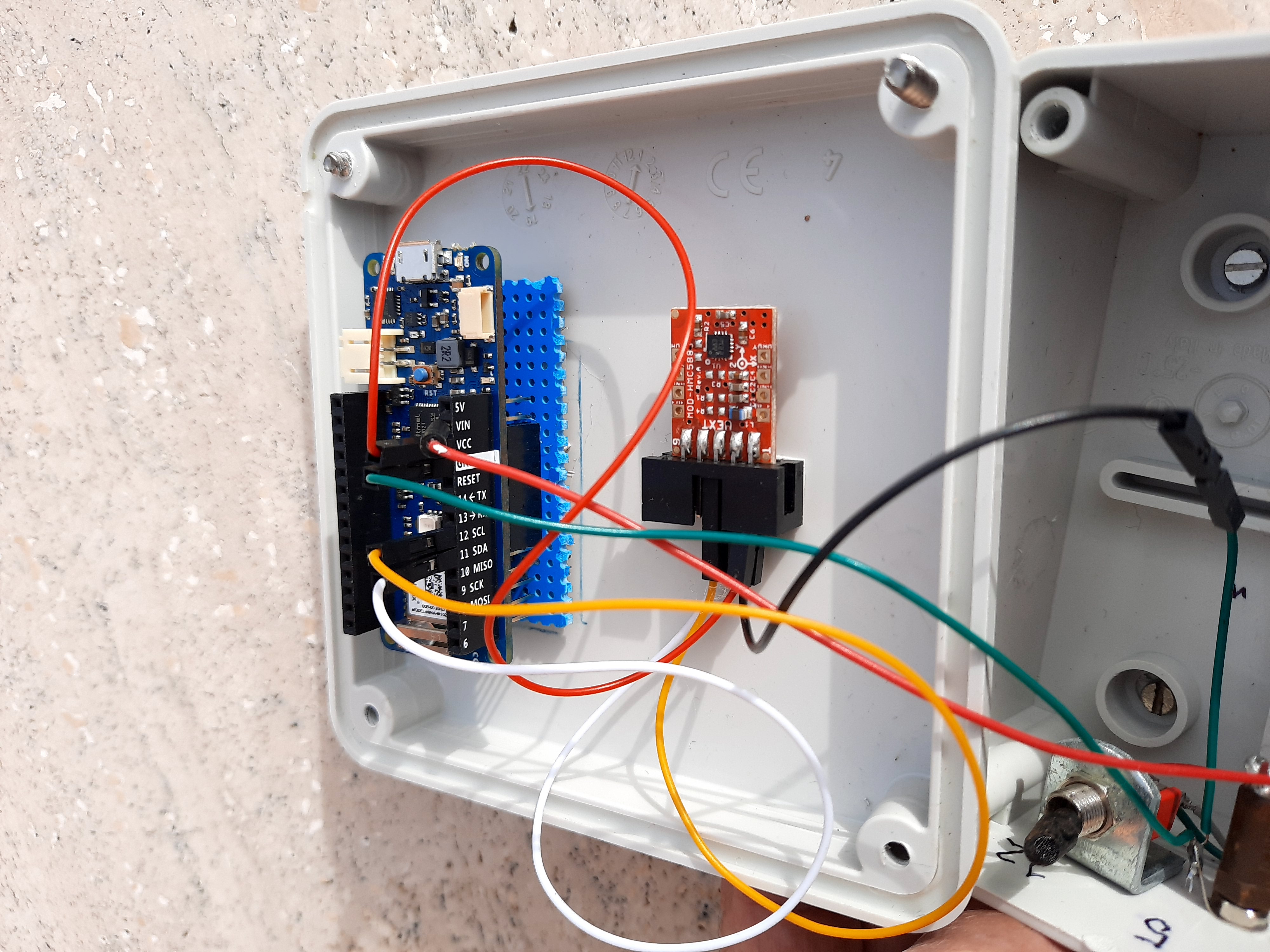

WiFi Magnetic Compass
Lido, IK5EKM, helping during tests
Caveat
It seems that, since the article was submitted to QST, the breakout boards using the HMC5883L Honeywell magnetic sensor chip have become unavailable. On the other hand on the market there are several "clones" which share the same name but are not compatible with the libraries and the software used in this project. Using a clone in this project with the present software will give disappointing results.
click here for information about distinguishing the "true"and the "clone chips.
It seems that the clone can be put to work satisfactorily but I do not have a direct experience with it. However I am willing to help and assist remotely those OMs who have got one and are not scared by experimenting a bit, adapting the software below.
Article
- A WiFi Antenna Rotator Compass, QST February 2022
- Original draft of the article, with more details
Schematic Diagram
Figures
Compass heading as displayed on the smartphone
Arduino Sketches and extra information
- MKR_Telnet_Compass.ino Software to install using the Arduino IDE. Version 1.1
- arduino_secrets.h This file should be copied in the folder where the above sketch resides
- Schematic of the Olimex HMC 5883L board
25/1/2022
